High Power Hot Wedge Welders Machine Geomembrane Sealing HDPE PP 0.8-3mm CX500S

Hebei Mingmai Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

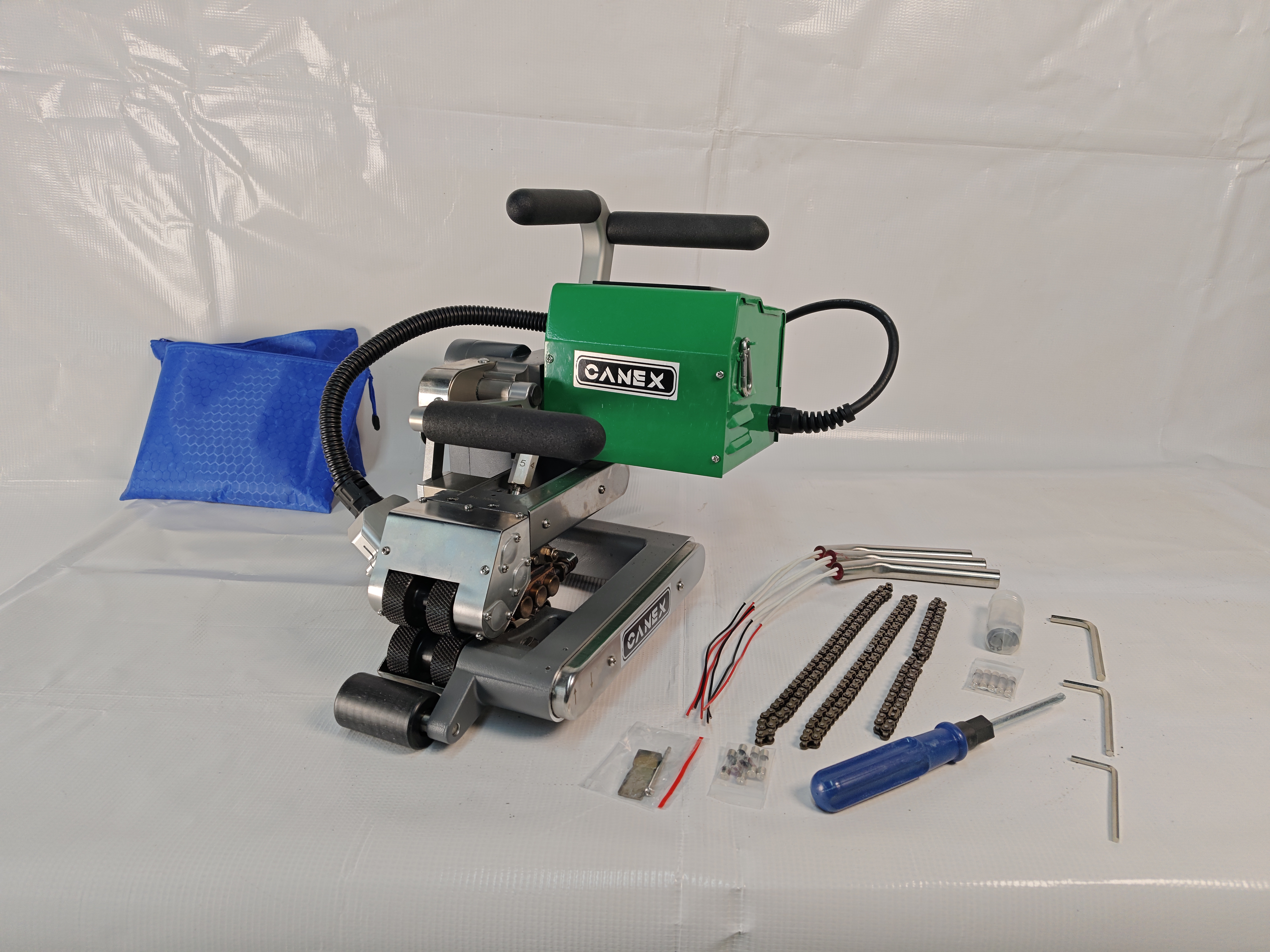

High Power Hot Wedge Welders Machine Geomembrane Sealing HDPE PP 0.8-3mm CX500S

  • 1
  • 2
  • 3

Brand Name : CANEX

Model Number : CX500S

Certification : CE,ISO

Place of Origin : Hebei,China

MOQ : 1 set

Price : US$2,100-US$2,500 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 sets per week

Delivery Time : 5-8 days

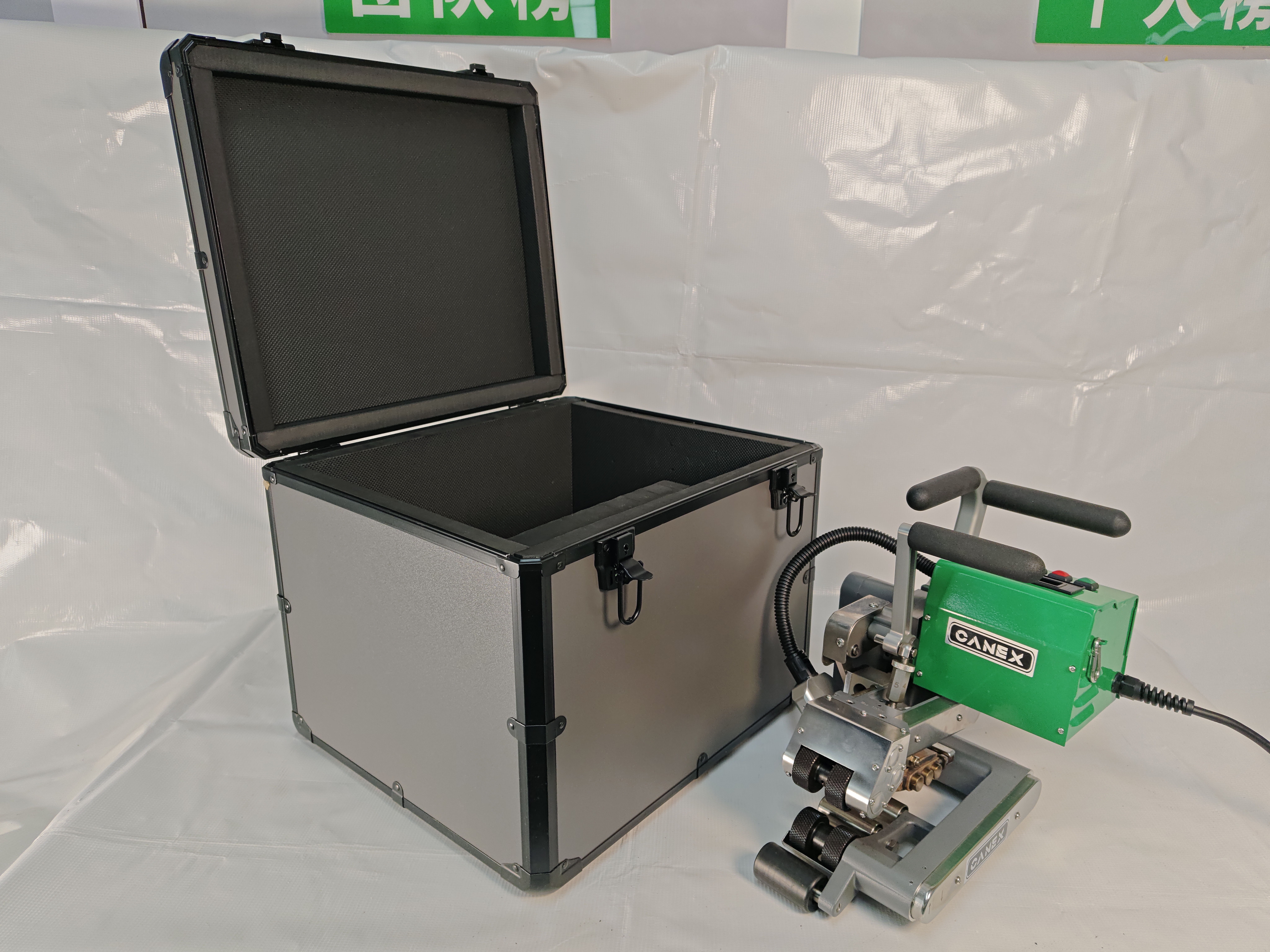

Packaging Details : Aluminum Alloy Box

Brand : CANEX

Model : CX500S

Input voltage : 220V/50HZ

Power : 1800W

Welding speed : 0-6m/min

Heating temperature : 0-450℃

Welding material thickness : 0.8mm-3.0mm

Welding seam width : 16mm*2, inner cavity 16mm

Overlap width : 110mm

G./N. weight : 17kg/10kg

Contact Now

CX500S Geomembrane Welding Machine With Dual Purpose Use For Circular Pond And Tank For HDPE PP Geomembrane

Product Description:

The CX500S has a power of 1800W and a weight of 10kg. This is a dualpurpose welding machine, support the same side into the film, that is, the two films are welded from the left side, the same side into the film unilateral welding, generally used for biogas pond, landfill cover, circular aquaculture pond welding, normal can also be both sides into the film, left and right into the film lap welding.

Product Specifications:

Voltage: 220V
Frequency: 50Hz
Power: 1800W
Welding speed: 0-6m/min
Heating emperature: 0-450℃
Welding material thickness: 0.8mm-3.0mm
Welding seam width: 16mm*2, inner cavity 16mm
Welding seam strength: ≥85% of the original material
Overlap width: 110mm
G./N. weight: 17kg/10kg

Applications:

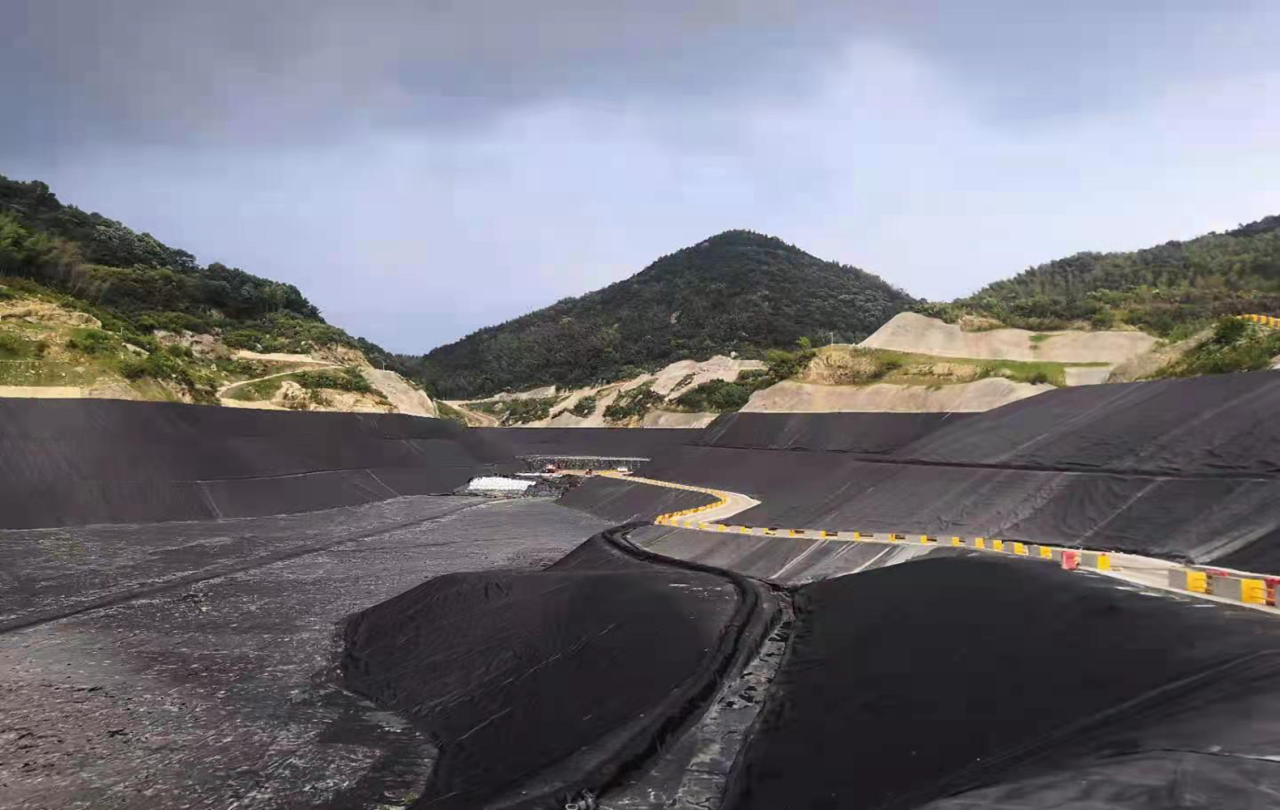

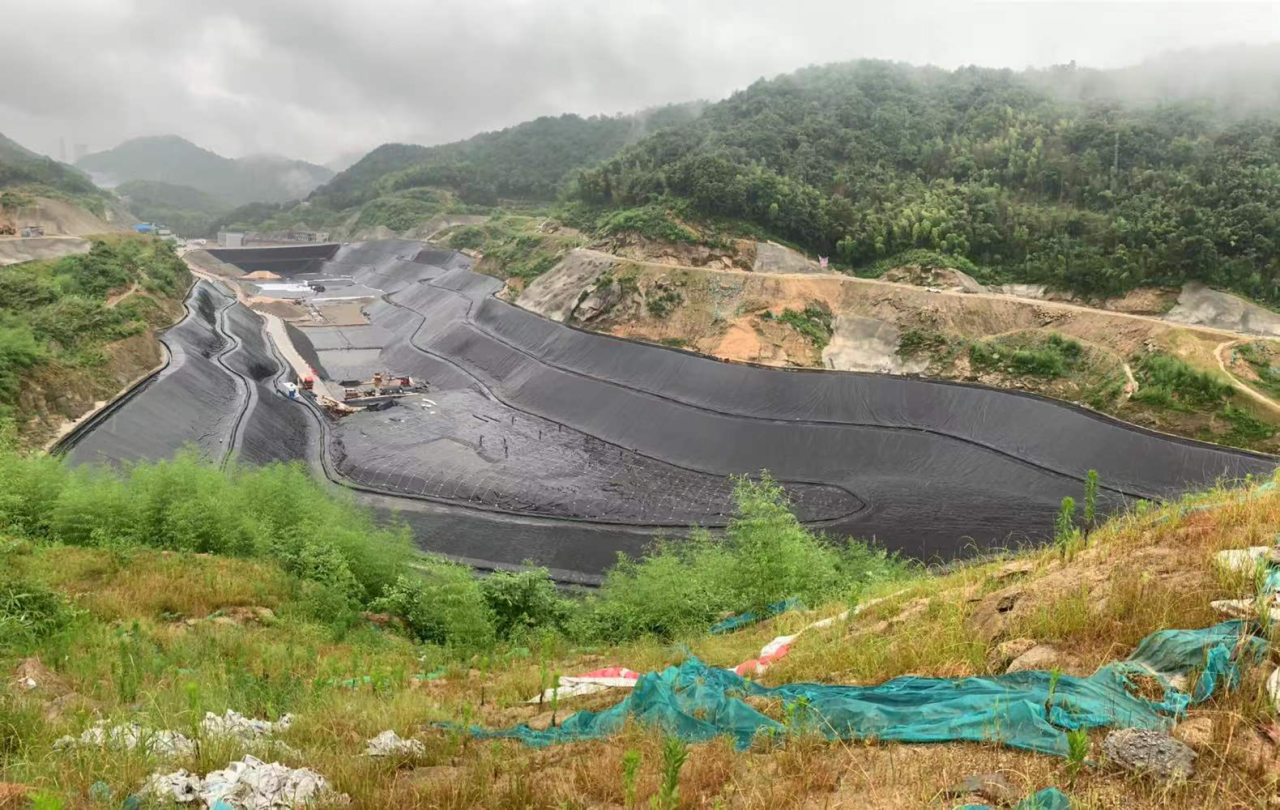

CX500S is a high-quality geomembrane sealing welder, which is used in the sealing of landfills, circular aquaculture ponds and tanks.

High Power Hot Wedge Welders Machine Geomembrane Sealing HDPE PP 0.8-3mm CX500SHigh Power Hot Wedge Welders Machine Geomembrane Sealing HDPE PP 0.8-3mm CX500S

Product advantages:

1. Main Frame Design

The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.

2. Precision Bearings

The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.

3. Liquid Crystal Display Screen

The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.

4. Pressure Adjustment

The entire bearing of the machine is imported from Germany.

5. Hot Wedge

Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times that of brass. Copper has good viscosity and the fixing screws are not loose.

6. Heating Tube

The wading depth of the machine is 50mm (water less than or eaualto 50mm wil no burn the machine). The heating cartridge adopts a curved tube design.

High Power Hot Wedge Welders Machine Geomembrane Sealing HDPE PP 0.8-3mm CX500SHigh Power Hot Wedge Welders Machine Geomembrane Sealing HDPE PP 0.8-3mm CX500S
