CX300 Dual Purpose Geomembrane Welder 1400W Power For 0.5-1.5mm HDPE PP Pond Liner Use For Landfill Mining Aquaculture
Product description:

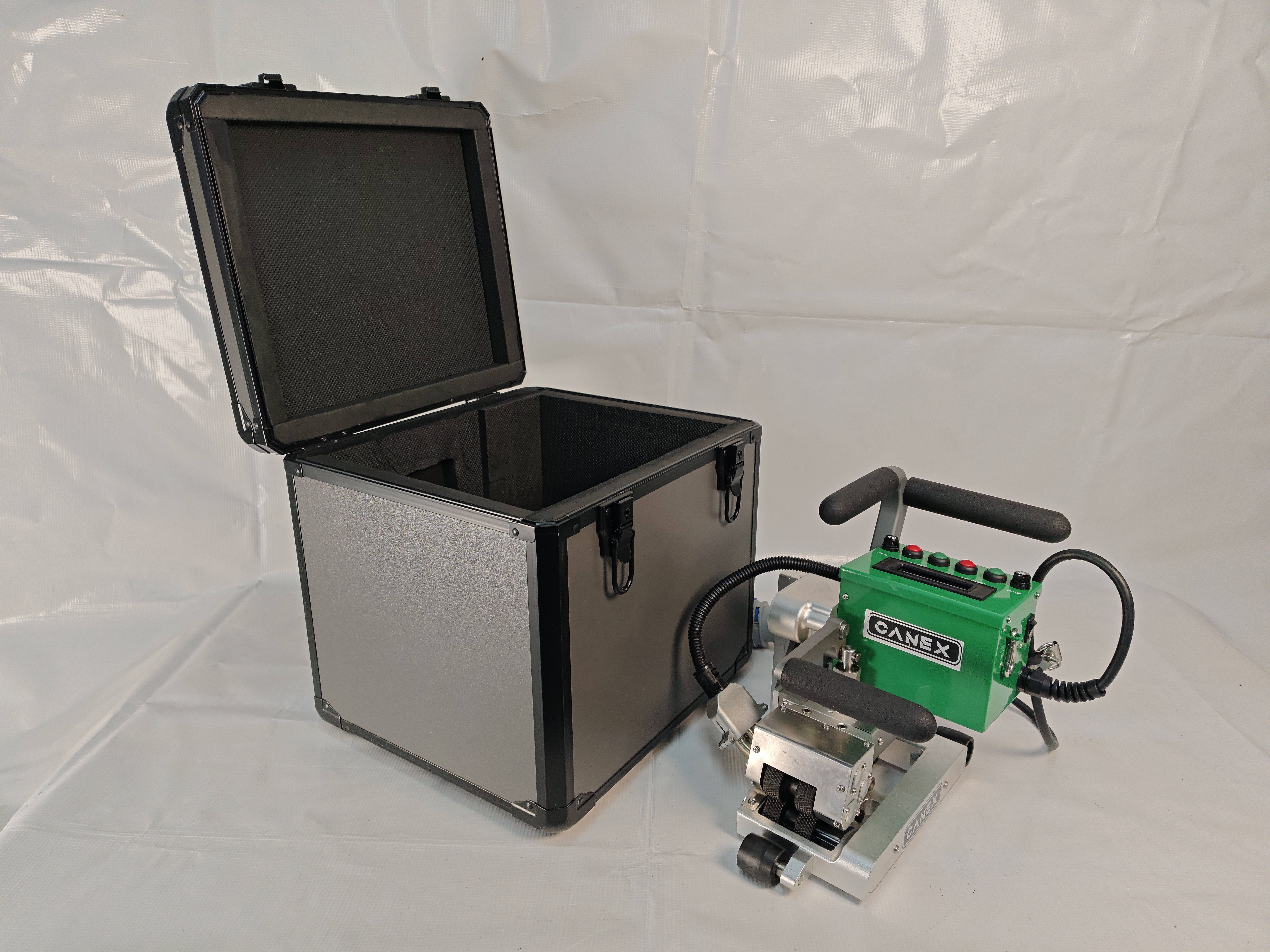

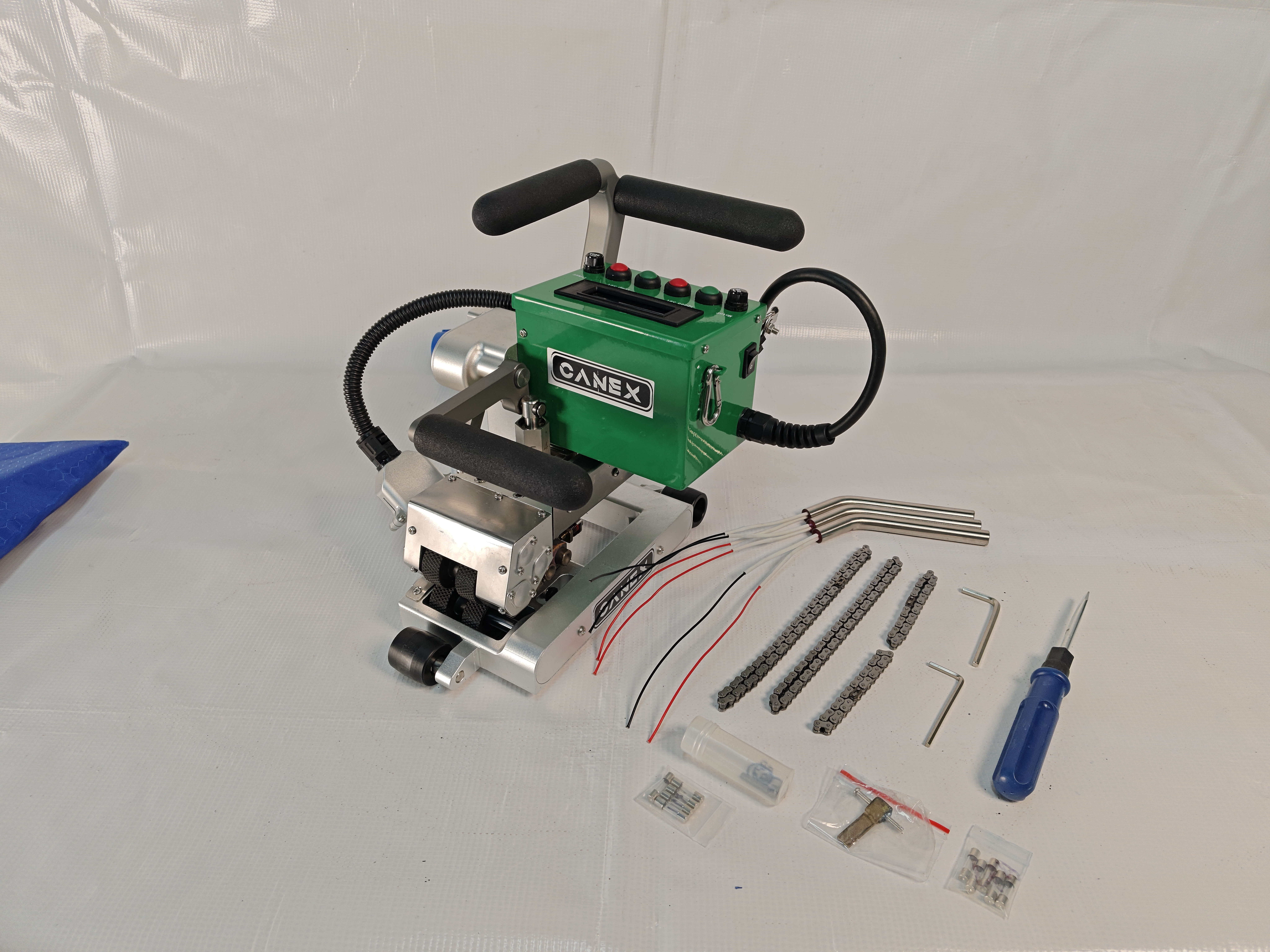

The CX300 has a power of 1400W and a weight of 7kg. This is a dual purpose welding machine, support the same side into the film, that is, the two films are welded from the left side, the same side into the film unilateral welding, generally used for biogas pond, landfill cover, circular aquaculture pond welding, normal can also be both sides into the film, left and right into the film lap welding.
Prodct Specifications:
| Voltage: | 220V |
| Frequency: | 50Hz |
| Power: | 1400W (hot wedge length 70mm) |
| Welding speed: | 0-8m/min |
| Heating temperature: | 0-450℃ |
| Welding material thickness: | 0.5mm-1.5mm |
| Welding seam width: | 15mm*2, Interior Cavity 12mm |
| Welding Seam strength: | ≥85% of original material |
| Overlap width: | 10mm |
| G./N. weight: | 11.5kg/7kg |

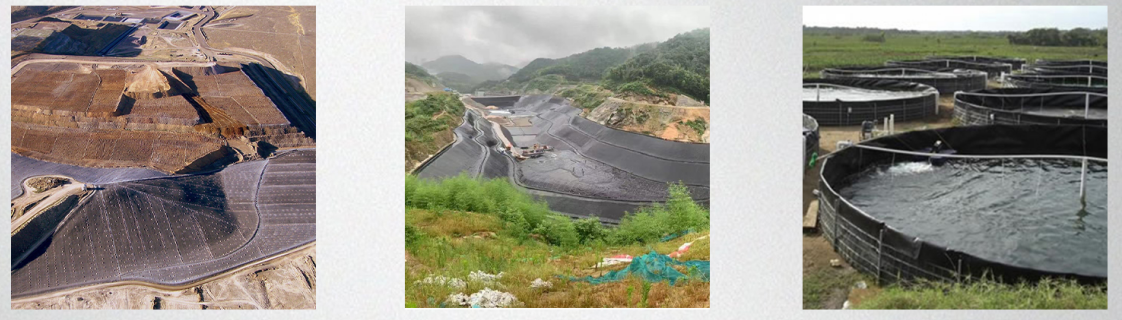

Applications:
1. Mining:
Mime wastewater, waste residue treatemnt, Tailings Leakage Prevention
2. Environmental Engineering:
Landill, Sewage treatment plant
3. Aquaculture:
Aquaculture ponds, fish ponds, shrimp ponds, etc,.
Product Advantages:
1. Main Frame Design:
The main frame is made of aviation aluminum,die-cast, and painted on the surface, which is light and strong.
2. Precision Bearings:
The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.
3. Digital Display Screen:
The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.
4. Pressure Adjustment:
The double handle design is ergonomic and the pressure nut is equipped with a high-strength spring for easy adjustment.
5. Hot Wedge
Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times than that of brass. Copper has good viscosity and the fixing screws are not easy to lose.
6. Heating Cartridge
The wading depth of the machine is 50mm (water less than or equal to 50mm will not burn the machine). The heating cartridge adopts a curved tube design.
