SWT - V200 / 63H 63 - 200 MM with CE Certification HDPE Pipe Butt Welding Machine
HDPE Pipe Butt Welding Machine Introduction:
MM-Tech V series is on-site hydraulic butt fusion welding machine. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without any additional equipment by simply adjusting the clamps` drag bar. It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF and other thermoplastics material.
HDPE Pipe Butt Welding Machine Specification:
| Welding Range | 63mm-200mm |
| Reducing Inserts | 63mm-75mm-90mm-110mm-125mm-140mm-160mm-180mm-200mm |
| Ranges of Application | PE,PP and PVDF |
| Working Voltage | 220V±10%,50/60Hz |
| Total Power | 3KW |
| Heating Plate | 1.5KW |
| Planning Tool | 0.75KW |
| Hydraulic Unit Motor | 0.75KW |
| Environment Temperature | -5°~45° |
HDPE Pipe Butt Welding Machine Features:
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

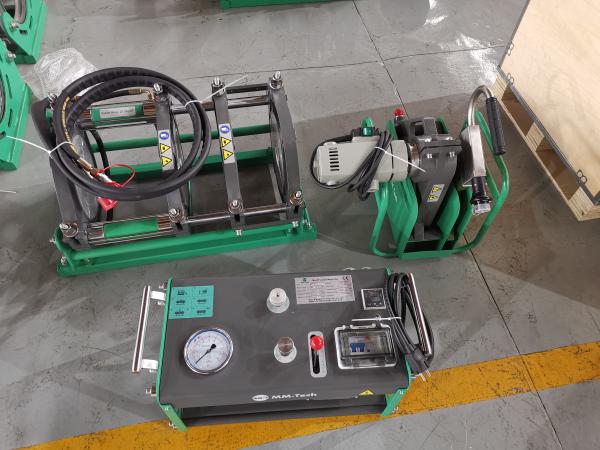

SWT-V200H includes:
*A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
*A Teflon coated heating plate with separate temperature control system;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
Package:
After-sales Service:
We always provide high quality products and workable price for every clients and have won the trust,
enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,
we provide them for free!
