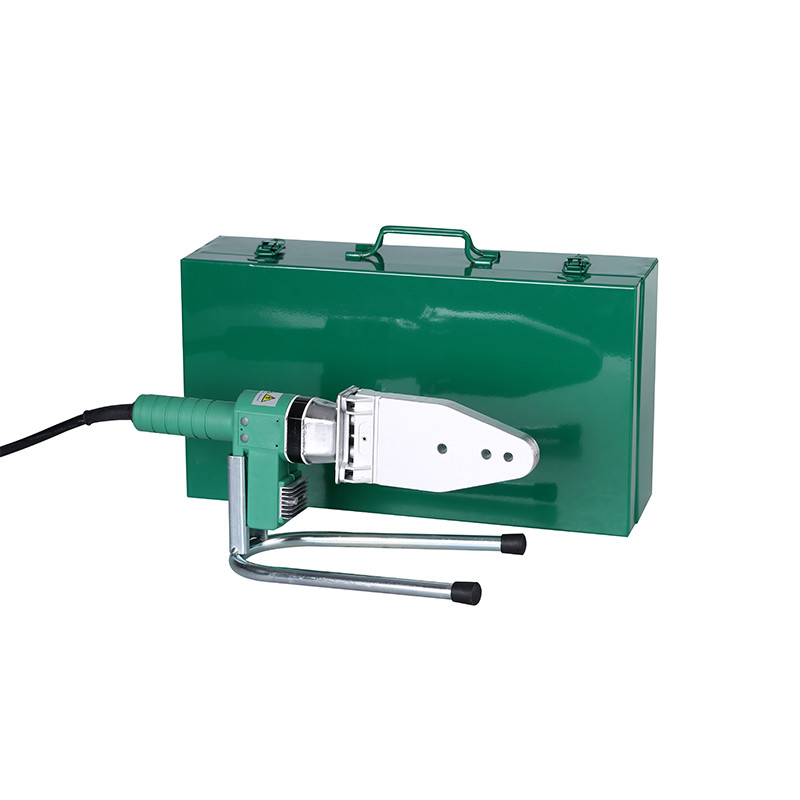

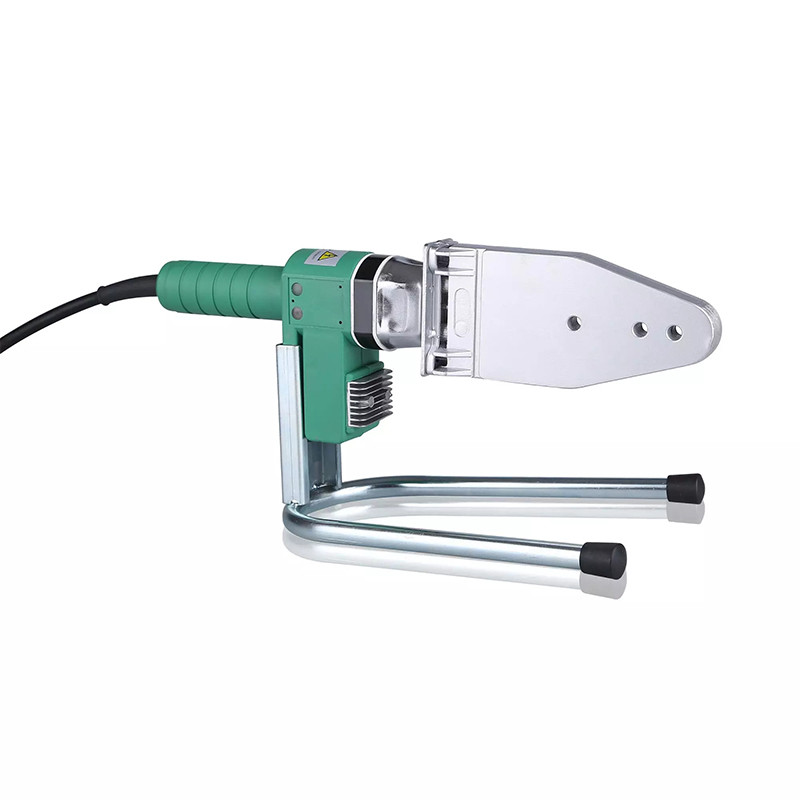

800w 20-63mm Thermofusion Ppr Pipe Socket Fusion Welding Machine

20-63mm Thermofusion PPR Pipe Socket Fusion Welding Machine

Application:

1. Suitable for butt fusion of plastic pipes made of PE, PP and PVDF material.

2. Simple structure, small and delicate, user friendly.

Socket Fusion Machine Introduction for Use:

• Apply die head
• Place the welding machine on the stander, chose die head according to pipe's diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.
• Power on
• Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.
• Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.
• Fusion pipes
• Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached (see the table below) and insert

Socket Fusion Machine Specification:

Socket Fusion Machine Application and Feature:

• Less Quantities is acceptable as first trail order for new customer.1. Apply die head
Place the welding machine on the stander, chose die head according to pipe’s diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.

2. Power on
Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.

Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.

3. Fusion pipes
Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached (see the table below) and insert

Package:

After-sales Service:

We always provide high quality products and workable price for every clients and have won the trust,
enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,
we provide them for free!

800w ppr socket fusion welding machine

63mm socket fusion welding machine

20mm socket fusion welding machine

800w 20-63mm Thermofusion Ppr Pipe Socket Fusion Welding Machine Images
