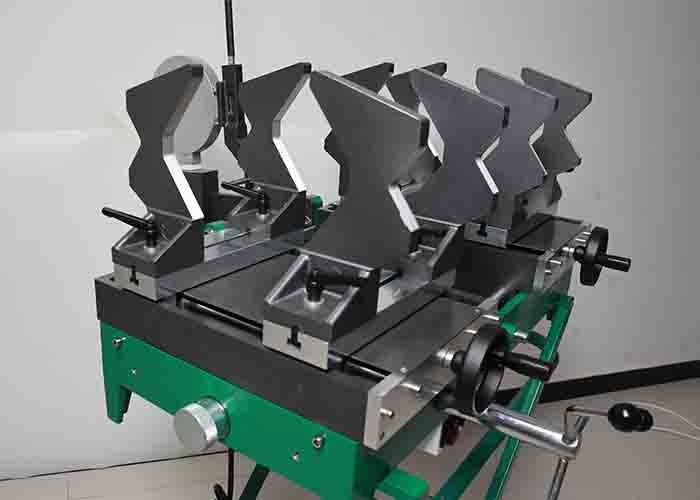

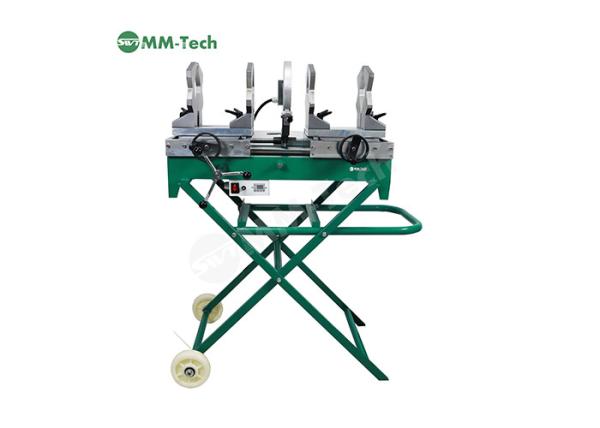

Prisma160 Plastic Pipe Tube Socket Fusion Bench Wheel Handle Welder Machine For 160mm
Table Socket Fusion Welding Machine Presentation:
Prisma160 Bench Tube Socket Fusion Welding Machine's thermostat control is infinitely adjustable for temperatures of up to 570 F. The machine can be used with heater adapter sizes in the 1/2" - 4" IPS range.
It is suitable for socket fusion jointing of PE and PP plastic pipes and fittings.
Clamping at one side on the table.Work table moved by handwheel.
Table Socket Fusion Welding Machine Specification:
| Model | Prisma125 | Prisma160 |
Working tempera-
ture | 180-280℃ | 180-280℃ |
| Materials | HDPE/PP-R/PPH/PB/PVDF |
| Rated voltage | 220VAC-50/60HZ |
| Rated power | 1400w | 200ow |
| Working range | 25-125mm | 75-160mm |
Dimensions machine
working | 1500*840*1260 | 1600*900*1100 |
Transport case
wood | 1500*800*1300 | 1600*920*1150 |
| Weight prisma only | 68-100kg | 78-110kg |
| Weight case wood | 53kg | 60kg |
Advantages:
1. Suitable for 20-160mm pipe diameter range
2. The bracket can be split for convenient use in narrow spaces
3. Electric drill as a power, for quickly separate and close
4. Mechanical fixing makes the welding quality more secure
5. Can effectively reduce labor and improve construction efficiency
Service:
1. Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
2. 24-hour online customer service to solve after-sales problems, professional engineer guidance + video teaching
